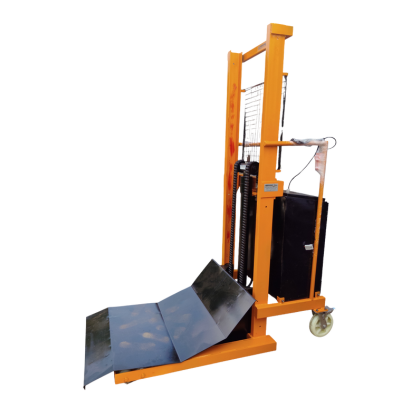

Paper Reel Stacker

The Damage-Free Solution for Lifting and Loading Heavy Rolls

Heavy paper reels, plastic films, and textile rolls are notoriously difficult to handle. Therefore, to prevent costly damage to your fragile inventory, you need the Paper Reel Stacker by Meeginz Industries. Specifically engineered for the printing and packaging sectors, this specialized machine replaces standard flat forks with a customized V-shaped cradle or a central lifting boom.

Unlike standard stackers that concentrate pressure and crush the bottom layers of a paper roll, our curved cradle distributes the weight perfectly. Consequently, the reel remains perfectly round and factory-fresh. Furthermore, the smooth hydraulic lifting mechanism allows operators to align heavy rolls directly with the spindles of a printing press effortlessly. Ultimately, this is the safest and most efficient way to transport, lift, and load cylindrical goods without relying on dangerous overhead hoists.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 500 kg to 2,000 kg (2 Ton)

• Lifting Height: 1.6 Meters to 3.0 Meters

• Handling Attachment: V-Block Cradle / Central Core Ram (Boom)

• Operation: Manual Hydraulic / Semi-Electric / Fully Electric

• Reel Diameter: Customized to your specific roll sizes

• Wheels: Heavy Duty Polyurethane (PU)

Why Choose Our Paper Reel Stacker?

1. Zero Product Deformation

A flattened paper roll jams machinery and ruins production runs. Because standard forks apply point-loads, they easily dent tightly wound materials. In contrast, the Meeginz V-Cradle matches the natural curve of your specific reel. This allows the machine to cradle the load gently. Thus, you eliminate material wastage and ensure smooth feeding into your processing machines.

2. Core Boom Efficiency

Some rolls need to be loaded by sliding them onto a machine shaft. To achieve this, we offer a Central Core Boom (a single, heavy-duty steel ram). By utilizing this boom, the operator simply drives the ram directly through the hollow cardboard core of the roll. As a result, picking up and positioning the roll horizontally becomes a rapid, one-step process.

3. Secure Transport Stability

Round objects are inherently prone to rolling off flat surfaces. Fortunately, the V-shaped bed naturally locks the cylinder in the center of the carriage. Moreover, for exceptionally smooth materials like plastic film, we can line the cradle with heavy-duty rubber pads. Hence, the load remains 100% secure while the stacker is moving across the factory floor.

4. Ergonomic Machine Loading

Manually wrestling a 500kg reel onto a machine is a major cause of workplace injury. Accordingly, our stackers do all the heavy lifting. Using precision hydraulic controls, a single operator can raise the roll to the exact height of the machine bed or unwinder stand. Consequently, changeover times are drastically reduced, and worker safety is guaranteed.

Ideal Applications

• Printing Presses: Loading massive newspaper or magazine paper rolls.

• Flexible Packaging: Handling large reels of BOPP film, aluminum foil, or laminates.

• Textile Manufacturing: Moving oversized fabric, carpet, or denim rolls.

• Wire & Cable: Lifting wooden cable drums by their central core.

• Tissue & Hygiene: Transporting bulky, soft jumbo tissue rolls without crushing them.

Why Buy From Meeginz Industries?

Meeginz Industries engineers solutions around your specific payload.

• Custom Cradle Dimensions: Since roll diameters and lengths vary wildly, we fabricate the V-block specifically for your minimum and maximum roll sizes.

• Interchangeable Attachments: For maximum versatility, we can design a stacker where you can swap between standard forks, a V-cradle, and a core boom.

• Local After-Sales Support: Being a specialized manufacturer in Ahmedabad, we guarantee fast structural modifications and reliable hydraulic servicing.

Frequently Asked Questions (FAQs)

Q: Can this stacker tilt or rotate the roll? A: Standard models lift the roll horizontally. However, if you need to pick a roll off a pallet vertically and turn it horizontally to load a machine, please ask us about our Hydraulic Reel Rotator Stacker.

Q: Which is better: V-Cradle or Core Boom? A: It depends on your process. Generally, a V-Cradle is best if the roll is wrapped and the core is blocked. A Core Boom is best if you need to load the roll directly onto an unwinding shaft.

Q: Is it hard to push a 1-Ton roll manually? A: Yes, moving 1,000 kg manually requires effort. Therefore, for loads over 500 kg, we highly recommend our Semi-Electric or Fully Electric models for effortless transport.

Cradle Your Cargo. Prevent Damage.

Handle your valuable reels with precision and care. [Contact Meeginz Industries] for a quote on our Custom Paper Reel Stackers.
