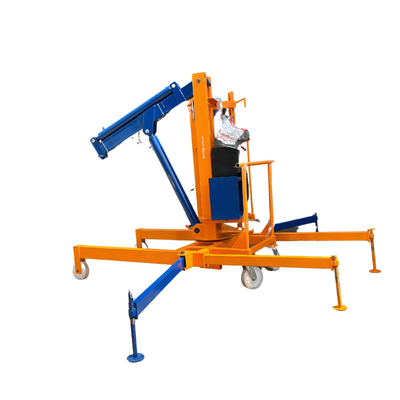

Hydraulic Rotated Floor Crane

Lift, Swing, and Place Loads Without Moving the Base

Standard floor cranes can only lift vertically. However, if you need to pick up a load from a pallet and place it sideways onto a workbench, turning the entire crane in a narrow aisle is often impossible. Therefore, the Hydraulic Rotated Floor Crane by Meeginz Industries is the ultimate solution for complex maneuvering. Specifically, this unit features a heavy-duty slewing bearing that allows the boom to rotate up to 360 degrees independent of the chassis.

Consequently, the operator can park the crane in one spot, lift the load, swing it to the desired position, and lower it—all without moving the wheels. Furthermore, the telescopic boom ensures you can reach deep into machinery or over obstacles. Ultimately, this rotating capability saves significant time and effort in crowded assembly lines and machine shops.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 500 kg to 1,000 kg (1 Ton)

• Rotation: 180° / 360° (Manual Slewing)

• Boom: Hydraulic Telescopic (3-Position)

• Operation: Manual Hydraulic Pump / Battery Lift

• Base: Heavy Duty Counterbalanced / Outrigger Type

• Mechanism: Ball Bearing Slewing Ring

Why Choose Our Rotated Floor Crane?

1. 360-Degree Flexibility

Fixed cranes require space to turn. In contrast, our Rotated Floor Crane acts like a mobile jib crane. By utilizing a precision slewing ring, the boom arm can rotate in a full circle. This allows you to service multiple machines from a single standing position. Thus, it is perfect for “work cells” where a worker sits between two conveyor belts.

2. Navigate Narrow Aisles

Warehouses are getting tighter. Since you don’t need to turn the crane’s chassis to move the load sideways, you can operate in aisles that are only slightly wider than the crane itself. Therefore, you maximize your floor space utilization. Moreover, the rear steering wheels allow for tight cornering when you do need to move.

3. Precision Positioning

Placing a heavy motor onto bolts requires accuracy. Fortunately, the rotating mechanism is smooth and controlled. Additionally, the boom can be locked in position once aligned. As a result, there is no unwanted swinging or drifting during the lowering process. Hence, delicate components are handled safely.

4. Maximum Reach

Reach matters. Accordingly, the crane features a long telescopic boom. You can extend the boom to pick up light loads far away, or retract it to lift heavy loads close to the column. Furthermore, the hydraulic cylinder provides a high lifting range. Consequently, it is versatile enough for both floor-level lifting and high-shelf placement.

Ideal Applications

• Machine Feeding: Picking raw material from a pallet and swinging it into a CNC lathe.

• Assembly Lines: Transferring engines from a conveyor to a test bench.

• Maintenance: Removing pumps from tight corners where a forklift cannot turn.

• Foundries: Moving castings between processing stations.

• Workshops: General lifting where floor space is restricted.

Why Buy From Meeginz Industries?

Meeginz Industries engineers specialized lifting gear.

• Heavy Duty Bearings: We use industrial-grade slewing rings that withstand side-loading forces.

• Safety Locks: Because safety is paramount, we include a mechanical rotation lock to secure the boom during transport.

• Stability Testing: Being a manufacturer in Ahmedabad, we test the tipping point of every unit to ensure it remains stable even at full rotation.

Frequently Asked Questions (FAQs)

Q: Is the rotation manual or powered?A: Standard models feature Manual Rotation. The operator simply pushes the boom to swing it. However, the high-quality bearings make this very easy, even with a load.

Q: Does it have outriggers?A: Yes. To prevent tipping when the boom is swung to the side, most models feature extendable outrigger legs or a heavy counterweight base.

Q: Can it lift while rotating?A: Generally, yes. You can lift the load and then rotate it. However, for safety, we recommend keeping the load close to the ground while rotating to maintain maximum stability.
