Hydraulic Drum Stacker

Description

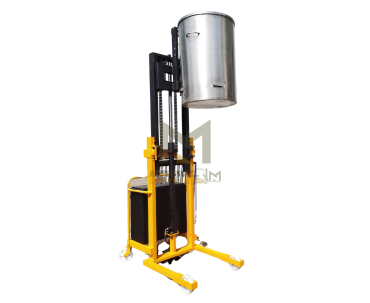

Hydraulic Drum Stacker

Maximize Storage Density with High-Reach Drum Stacking

Standard drum trolleys are great for moving barrels on the floor; however, they cannot help you utilize vertical space. Therefore, to organize drums on racks or pour liquids into tall reactor vessels, you need the Hydraulic Drum Stacker by Meeginz Industries. Specifically engineered for high-lift applications, this robust machine allows you to stack 210-liter drums up to three levels high on your warehouse racks safely.

Furthermore, this is not just a lifter; it is also a precision tilter. By utilizing a heavy-duty gearbox, the operator can lift a drum to 1.6 meters (or up to 3 meters) and rotate it 360 degrees. Consequently, it is the perfect tool for dispensing chemicals into high-inlet hoppers or mixing tanks. Ultimately, the Meeginz Drum Stacker serves a dual purpose: it optimizes your storage space while enhancing operational safety during high-level pouring tasks.

Key Technical Specifications

• Brand: Meeginz Industries

• Structure: Heavy Duty C-Channel Mast

• Load Capacity: 350 kg to 500 kg

• Lifting Height: 1600 mm (Standard) / up to 3000 mm (Custom)

• Tilting: Manual Gearbox (360° Rotation)

• Lift Operation: Hydraulic Hand Pump / Battery Operated (Semi-Electric)

• Leg Design: Wide Straddle (to fit around pallets)

Why Choose Our Hydraulic Drum Stacker?

1. Superior Vertical Reach

Floor space is expensive. Therefore, stacking drums vertically is essential for cost savings. Unlike standard handlers, our Stacker features a high-mast design. This allows you to place drums on the second or third tier of your racking system effortlessly. Thus, you can instantly double or triple your warehouse storage capacity without renting more floor area.

2. Stable High-Level Pouring

Pouring chemicals from a height of 2 meters is dangerous if not controlled. Fortunately, the Meeginz Stacker is designed with a wide wheelbase and heavy counter-balancing. Moreover, the worm-gear tilting mechanism is self-locking. As a result, the drum remains perfectly steady at any angle, ensuring zero spillage even at maximum height.

3. Versatile Pallet Handling

Loading drums onto pallets can be tricky. However, our stacker features “Straddle Legs.” Specifically, the front legs are spaced wide enough to go around a standard pallet. Consequently, you can pick up a drum from the floor and place it directly into the center of a pallet (or vice versa) without the legs getting in the way.

4. Robust & Durable

Safety is non-negotiable when lifting 300kg overhead. Accordingly, we use heavy-gauge structural steel for the mast assembly. In addition, the hydraulic cylinder is fitted with a safety valve to prevent sudden drops in case of hose failure. Hence, your operators are protected at all times.

Ideal Applications

• Chemical Warehousing: Stacking drums on multi-tier racks.

• Paint Manufacturing: Pouring resins into tall mixing vessels.

• Logistics: Loading drums directly onto trucks or containers from ground level.

• Food Processing: Dispensing ingredients into high hoppers.

• Oil Refineries: High-density storage of lubricant barrels.

Why Buy From Meeginz Industries?

Meeginz Industries lifts your productivity.

• Custom Lift Heights: We manufacture masts reaching up to 3 meters based on your specific rack height.

• Ease of Maintenance: Since we use standard hydraulic components, servicing is simple and affordable.

• Factory Direct: Being a manufacturer in Ahmedabad, we provide robust industrial quality at competitive prices.

Frequently Asked Questions (FAQs)

Q: Can this machine pick up a drum from a pallet? A: Yes. The wide “straddle leg” design allows the machine to drive around the pallet, so the clamp can reach the drum sitting in the center.

Q: Is it manual or electric? A: The standard model is Manual Hydraulic (Hand/Foot pump). However, for frequent lifting, we highly recommend our Semi-Electric model (Battery Lifting + Manual Moving) to reduce operator fatigue.

Q: How high can it lift? A: Our standard stock model lifts to 1.6 meters (ideal for 2-tier stacking). However, we custom build units up to 3 meters for 3-tier racking systems.

Reach Higher. Store Smarter.

Optimize your vertical space safely. [Contact Meeginz Industries] for a quote on our High-Reach Hydraulic Drum Stackers.
