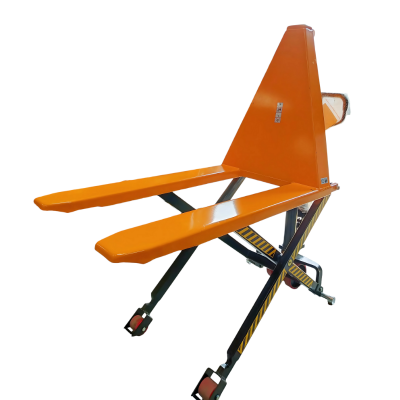

High Lift Pallet Truck

Description

High Lift Pallet Truck

The Ergonomic, Dual-Purpose Mobile Workbench

Standard pallet trucks are excellent for horizontal transport; however, they only lift the load a few inches off the floor. Consequently, workers are forced to constantly bend, stretch, and lift heavy boxes from ground level, which rapidly leads to severe back injuries and reduced productivity. Therefore, to create a safe and highly efficient packing station anywhere in your facility, you need the High Lift Pallet Truck by Meeginz Industries. Specifically engineered with a heavy-duty hydraulic scissor mechanism, this machine elevates standard pallets directly to a comfortable, 800mm waist height.

Unlike static lifting tables that cannot be moved, our High Lift Truck operates exactly like a normal pallet jack when lowered. This allows the operator to easily transport a 1.5-Ton load across the warehouse. Furthermore, once positioned at the assembly line or dispatch area, a few pumps of the handle transform it into a rigid, ergonomic workbench. Ultimately, this highly versatile lifter is the smartest investment you can make to speed up manual sorting tasks while protecting the long-term health of your workforce.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 1,000 kg (1 Ton) to 1,500 kg (1.5 Ton)

• Max Lifting Height: 800 mm (Standard Ergonomic Waist Height)

• Mechanism: Heavy-Duty Hydraulic Scissor Lift

• Material: Reinforced Mild Steel with Industrial Powder Coating

• Wheels: Non-Marking Polyurethane (PU) or Nylon

• Safety Feature: Automatic Floor-Locking Stabilizers

• Operation: Manual Hydraulic Pump (Electric Battery Lift Optional)

Why Choose Our High Lift Pallet Truck?

1. Ultimate Ergonomic Efficiency

Fatigue is the enemy of fast logistics. Because this truck brings the work up to the worker, your staff no longer has to bend over to reach the bottom layers of a pallet. As a result, they can pack boxes, inspect parts, or assemble components in a natural, upright posture. Thus, you immediately boost daily throughput and drastically reduce the risk of workplace compensation claims.

2. Automatic Safety Stabilizers

Lifting heavy weight on wheels creates a dangerous tipping hazard. Fortunately, Meeginz engineers have integrated an automatic mechanical braking system. Once the forks are raised past 400mm, the solid steel scissor legs automatically deploy and press firmly against the floor. Consequently, the rear steering wheels are lifted slightly off the ground, locking the truck securely in place so it cannot roll away while acting as a workbench.

3. Two Machines in One

Cluttering your factory floor with separate transport trucks and static lifting tables wastes valuable space. Accordingly, this machine does the job of two. When the scissor mechanism is fully retracted, it drives, steers, and corners just like a standard hand pallet truck. Then, it elevates to become a heavy-duty workstation wherever you need it.

4. Premium Hydraulic Reliability

Scissor mechanisms require powerful, leak-proof lifting force. By utilizing a specialized, single-cylinder hydraulic pump equipped with hard-chrome plated pistons and premium polyurethane seals, the lifting action is incredibly smooth. Moreover, the release valve offers millimeter-precise lowering control, ensuring fragile goods are never dropped abruptly.

Ideal Applications

• Print & Packaging: Feeding heavy stacks of paper or cardboard into processing machines at waist height.

• Assembly Lines: Acting as an adjustable-height feeding table for manufacturing components.

• Retail Sorting: Breaking down mixed pallets in the stockroom without bending over.

• Dispatch & Logistics: Shrink-wrapping and labeling outbound pallets ergonomically.

• Workshops: Functioning as a mobile, heavy-duty workbench for repairing heavy motors or dies.

Why Buy From Meeginz Industries?

Meeginz Industries prioritizes worker safety and durability.

• Semi-Electric Options: If your operators are constantly lifting 1.5-Ton loads all day, we offer a Battery-Operated Lift version that raises the scissor mechanism at the push of a button, completely eliminating manual pumping.

• Custom Fork Lengths: Since pallets vary in size, we can manufacture the forks to precisely match the length of your specific skids or bins.

• Local Gujarat Manufacturing: Being a trusted manufacturer based in Ahmedabad, we guarantee immediate availability of replacement hydraulic seals, PU wheels, and structural spares to keep your line moving.

Frequently Asked Questions (FAQs)

Q: Can this lift closed-bottom (reversible) pallets? A: No. Because the scissor legs must drop down through the bottom of the pallet to touch the floor and stabilize the load, it can only be used with “open-bottom” (Euro-style) pallets or skids.

Q: Can I drive the truck while the load is fully elevated? A: No, for strict safety reasons. Once the forks exceed 400mm in height, the automatic stabilizers lock the truck to the floor to prevent it from tipping over while someone is working on the elevated pallet.

Q: Is it heavier to push than a standard pallet truck? A: Slightly. Due to the heavy-duty steel scissor mechanism housed under the forks, it weighs a bit more than a standard pallet truck, but our high-quality PU bearings ensure it still rolls smoothly across flat concrete.

Stop Bending. Start Producing.

Protect your staff from back strain and speed up your workflow. [Contact Meeginz Industries] for a quote on our Heavy Duty High Lift Pallet Trucks today.
