Double Mast Goods Lift

Description

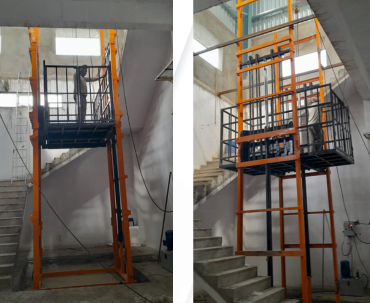

Double Mast Goods Lift

The Ultimate High-Capacity Solution for Multi-Floor Material Transfer

Moving heavy raw materials or finished goods between the ground floor and a mezzanine or upper level is a major logistical bottleneck. Therefore, to keep your supply chain moving efficiently, you need the Double Mast Goods Lift by Meeginz Industries. Specifically engineered for high-capacity industrial environments, this hydraulic elevator safely transports loads ranging from 1 Ton to 5 Tons across multiple floors.

Unlike wire-rope hoists that swing or single-mast lifts that can tilt under uneven loads, our dual-mast design provides rigid, symmetrical support on both sides of the platform. Consequently, the lifting carriage remains perfectly level, even when a heavy pallet is placed off-center. Furthermore, since it utilizes a ground-mounted hydraulic power pack, it eliminates the need for an expensive overhead machine room. Ultimately, this system delivers the safety of a commercial elevator combined with the rugged durability required for a busy warehouse.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 1,000 kg to 5,000 kg (1 to 5 Tons)

• Lifting Height: Up to 15 Meters (Suitable for G+1, G+2, G+3)

• Mast Structure: Heavy Duty Dual H-Beam / C-Channel Guide Rails

• Power System: AC 415V (3 Phase) Electric Hydraulic Power Pack

• Platform Cabin: Anti-Skid Chequered Plate with MS Wire Mesh Enclosure

• Safety Features: Limit Switches, Overload Relief Valve, Hose Burst Valve

Why Choose Our Double Mast Goods Lift?

1. Superior Dual-Mast Stability

Uneven loading is a common warehouse reality. Because single-mast lifts support the platform from only one side, heavy off-center loads can cause the carriage to bind or tilt. In contrast, the Meeginz Double Mast Lift guides the platform simultaneously on two heavy-duty steel columns. Therefore, it handles bulky, unevenly distributed cargo with absolute stability and zero structural stress.

2. Smooth Hydraulic Power

Sudden jerks can damage fragile goods. Fortunately, our electric hydraulic system provides a perfectly smooth, continuous lifting motion. By utilizing premium hydraulic cylinders and flow-control valves, the platform ascends and descends without the vibrations associated with geared traction elevators. As a result, sensitive components arrive at the next floor intact.

3. Cost-Effective Installation

Traditional elevators require extensive civil work. Often, building an overhead machine room and a deep concrete pit disrupts operations and inflates budgets. However, our hydraulic goods lift is self-supported. The power pack sits quietly on the ground floor next to the mast, and it only requires a very shallow pit (approx. 300mm). Consequently, installation is fast, economical, and minimally invasive.

4. Uncompromising Safety Systems

Vertical lifting demands multiple fail-safes. Accordingly, every lift is equipped with a Hose Burst Valve. Specifically, if a hydraulic line is ever severed, this valve locks the oil flow instantly, preventing the platform from free-falling. Moreover, top and bottom limit switches automatically cut the motor power when the lift reaches its destination. Thus, over-travel accidents are entirely prevented.

Ideal Applications

• Warehousing & Logistics: Moving pallets from the ground to multi-tier racking or mezzanines.

• Manufacturing Plants: Transferring heavy raw materials to first-floor processing areas.

• Textile Mills: Transporting large fabric rolls between floors.

• Automobile Showrooms: Moving cars to upper-level display areas or service bays.

• Chemical Factories: Safely elevating drums and IBC tanks.

Why Buy From Meeginz Industries?

Meeginz Industries engineers vertical mobility you can trust.

• Custom Cabin Sizes: Since pallets and trolleys come in all shapes, we fabricate the cabin dimensions (Length x Width x Height) to perfectly match your specific cargo.

• Collapsible Gates: We provide heavy-duty MS collapsible gates or interlocking doors to ensure cargo cannot fall out during transit.

• Local Manufacturing & AMC: Being based in Ahmedabad, we provide rapid installation, load testing, and reliable Annual Maintenance Contracts (AMC) across the region.

Frequently Asked Questions (FAQs)

Q: Can personnel travel inside this lift? A: No. This is strictly a Goods Lift (Freight Elevator). For safety and regulatory reasons, it is not designed or certified for human passenger travel.

Q: Does it require a deep pit? A: No. It only requires a shallow pit of about 300 mm to 400 mm. This allows the platform to sit completely flush with the ground floor, so a hand pallet truck can roll straight in without a ramp.

Q: What happens during a power failure? A: The platform will safely hold its position. To retrieve the goods, the operator simply opens the manual emergency lowering valve on the ground-floor power pack, and the lift will descend smoothly using gravity.

Elevate Your Efficiency.

Stop struggling with stairs and hoists. [Contact Meeginz Industries] for a quote on our Heavy Duty Double Mast Goods Lifts.
