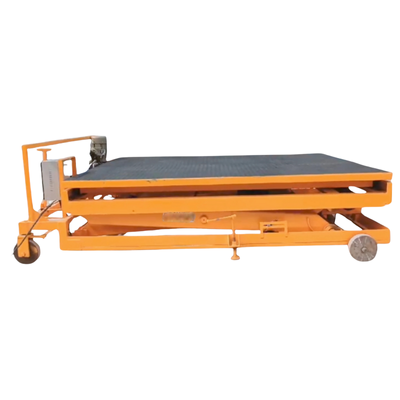

Die Loader Scissor Lift Table

Description

Die Loader Scissor Lift Table

The Safest Way to Transport and Load Heavy Dies

In the metal stamping and injection molding industries, “Quick Die Change” (QDC) is essential for productivity. However, manually dragging heavy molds from a trolley into a press is dangerous and time-consuming. Therefore, to streamline this process, you need the Die Loader Scissor Lift Table by Meeginz Industries. Specifically engineered for tool rooms, this heavy-duty cart features a specialized roller top deck that allows dies to slide effortlessly onto the machine bed.

Unlike flat-top tables where friction makes sliding difficult, our die loader uses high-capacity rollers or ball transfer units. Consequently, a single operator can push a 2-ton die with minimal effort. Furthermore, the hydraulic lifting mechanism ensures precise height alignment with the press bolster. Ultimately, this equipment reduces machine downtime significantly while eliminating the risk of crushed fingers and back injuries.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 500 kg to 5,000 kg (5 Ton)

• Table Top: Heavy Duty Roller Conveyor / Ball Transfer Units

• Lifting Height: Adjustable to match Press Bed Height

• Safety: Mechanical Die Stoppers / Side Locks

• Operation: Manual Hydraulic / Electric Battery Operated

• Attachment: Optional Push-Pull Mechanism

Why Choose Our Die Loader Lift?

1. Friction-Free Die Transfer

Friction is the enemy. Because steel dies are heavy and flat, they stick to standard surfaces. In contrast, Meeginz Die Loaders are equipped with industrial-grade rollers. This allows the heavy mold to glide smoothly from the trolley into the press. Thus, manual struggling and crowbar usage are completely eliminated.

2. Secure Die Locking System

A rolling load is a hazard during transport. To prevent accidents, our tables feature robust mechanical die stoppers at the ends of the roller track. Specifically, these locks ensure the heavy die cannot roll off the trolley while you are moving it across the factory floor. Once aligned with the press, the operator simply releases the lock to slide the die off.

3. Precision Height Matching

Alignment must be exact. Fortunately, our hydraulic system offers millimeter-perfect lifting. By utilizing a fine-control release valve, the operator can level the roller deck exactly with the press bed. As a result, the transition is seamless, preventing damage to the delicate die edges or the machine bed itself.

4. Push-Pull Assistance (Optional)

Some dies are too heavy to push by hand. Accordingly, for loads over 2 Tons, we offer a Push-Pull Device. This mechanism hooks onto the die and uses a mechanical crank or hydraulic cylinder to pull the die out of the press or push it in. Hence, even the heaviest tools can be handled by one person safely.

Ideal Applications

• Injection Molding: Rapid mold changes for plastic component manufacturers.

• Power Press Shops: Loading progressive dies into stamping presses.

• Forging Plants: Handling hot and heavy forging dies.

• Tool Rooms: Moving dies from storage racks to maintenance benches.

• Foundries: Transporting heavy patterns and core boxes.

Why Buy From Meeginz Industries?

Meeginz Industries speeds up your production.

• Custom Roller Spacing: We design the roller pitch based on the size of your smallest die to ensure smooth travel.

• Heavy Structure: Since dies provide point loads, we reinforce the scissor arms to prevent wobbling.

• Local Manufacturing: Being based in Ahmedabad, we can visit your press shop to measure the exact bed heights and aisle widths.

Frequently Asked Questions (FAQs)

Q: Can it handle different die sizes? A: Yes. The roller bed is wide enough to accommodate your largest die. However, for smaller dies, ensure the roller spacing is close enough so the die doesn’t get stuck between rollers.

Q: Is the roller top removable? A: Generally, it is welded for strength. However, we can design a Detachable Roller Top if you also need a flat table for other maintenance tasks.

Q: Does it have a brake? A: Yes. High-quality floor locks are essential. Therefore, every unit comes with a heavy-duty floor brake to keep the trolley 100% stationary during the loading/unloading process.

Reduce Downtime. Increase Safety.

Make die changes fast and effortless. [Contact Meeginz Industries] for a quote on our Heavy Duty Die Loader Scissor Lift Tables.
