Counter Balance Electric Stacker

Description

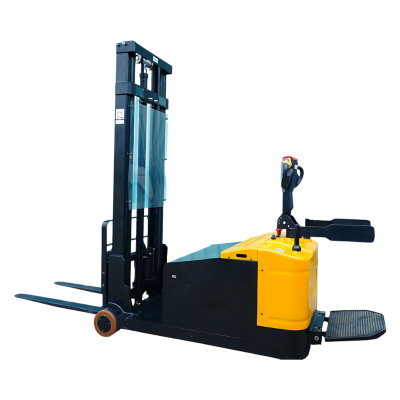

Counter Balance Electric Stacker

The Compact, “Legless” Alternative to a Full-Sized Forklift

Standard pallet stackers have front support legs that extend under the forks. Unfortunately, these legs prevent you from lifting closed-bottom pallets or getting close to machines with solid bases. Therefore, to solve this universal warehousing problem, you need the Counter Balance Electric Stacker by Meeginz Industries. Specifically engineered with a heavy rear weight box, this fully powered machine eliminates the need for front straddle legs entirely.

Consequently, it operates exactly like a traditional counterbalance forklift but in a much smaller, pedestrian-operated footprint. Furthermore, because it is fully electric, the operator can drive, steer, and lift heavy loads up to 2 Tons with zero physical exertion. Ultimately, if you need to handle multiple pallet types, load trucks directly from the ground, or navigate tight aisles where a forklift cannot fit, this is your most versatile material handling solution.

Key Technical Specifications

• Brand: Meeginz Industries

• Capacity: 500 kg to 2,000 kg (2 Ton)

• Lifting Height: 1.6 Meters to 4.5 Meters (Duplex/Triplex Mast)

• Design: Reverse Counterbalance (Zero Front Legs)

• Operation: Fully Electric (Power Drive + Power Lift)

• Battery: 24V High-Capacity Industrial Traction Battery

• Controller: Curtis / Zapi (Step-less Speed Control)

• Forks: Heavy Duty Forged Steel (Adjustable Width)

Why Choose Our Counter Balance Stacker?

1. Handle Any Pallet Type

Pallet incompatibility slows down operations. Because standard stackers have front legs, they can only lift “open” (Euro-style) pallets. In contrast, the Meeginz Counter Balance Stacker has no front obstructions. This allows the forks to slide effortlessly into “closed-bottom” or reversible pallets. Thus, you never have to worry about which type of pallet your supplier sends you.

2. Unrestricted Machine Access

Loading a CNC machine or an industrial oven requires getting close. Often, the base of the machine blocks standard stacker legs from moving forward. However, with our legless design, the carriage can drive right up against the machine bed. As a result, you can place heavy dies, raw materials, or components exactly where they are needed safely.

3. Effortless Electric Operation

Worker fatigue leads to lower productivity. Fortunately, this unit is fully self-propelled. By utilizing an ergonomic tiller head equipped with thumb-wheel throttles, a single operator can maneuver heavy loads effortlessly. Moreover, the electro-hydraulic lift system raises pallets to the top rack in seconds. Hence, warehouse throughput is massively increased.

4. Cost-Effective Forklift Alternative

Buying a full-sized sit-down forklift is a massive capital expense. Additionally, forklifts require very wide aisles to turn. Therefore, our Counter Balance Stacker is the perfect middle ground. It provides the same functional benefits as a forklift but at a fraction of the cost. Furthermore, its tight turning radius saves valuable racking space.

Ideal Applications

• Warehousing: Stacking both open and closed pallets in narrow aisles.

• Loading Docks: Loading and unloading delivery trucks from ground level.

• Manufacturing: Feeding heavy materials directly into production machinery.

• Die Handling: Transporting and loading molds where floor access is restricted.

• Cold Storage: Navigating tight, expensive freezer spaces efficiently.

Why Buy From Meeginz Industries?

Meeginz Industries delivers heavy-duty reliability.

• Electronic Power Steering (EPS): Because the counterweight makes the machine heavy, we offer EPS to make steering completely effortless for the operator.

• Tilt Cylinders: Just like a real forklift, we can equip the mast with forward and backward tilt capabilities for safer load handling.

• Local Support: Being based in Ahmedabad, we ensure rapid deployment, battery servicing, and spare parts availability across Gujarat.

Frequently Asked Questions (FAQs)

Q: Can it load a truck from the ground? A: Yes, absolutely. Since there are no front legs to hit the rear bumper of the truck, you can drive the stacker right up to the tailgate and place the pallet inside.

Q: Is it heavier than a normal stacker? A: Yes. To balance the load safely without front legs, it contains a heavy cast-iron or concrete ballast in the rear chassis. However, the powerful electric drive motor means the operator feels zero resistance.

Q: Do my operators need a forklift license to use this? A: Generally, no. Because it is a pedestrian “walk-behind” or “stand-on” unit with restricted speeds, it usually falls under standard warehouse equipment training, saving you certification costs.

Forklift Power. Stacker Size.

Handle any pallet without restriction. [Contact Meeginz Industries] for a quote on our Counter Balance Electric Stackers.
