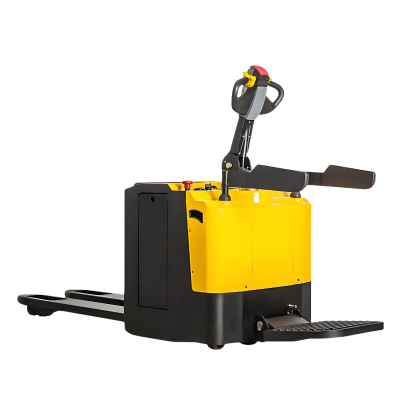

Battery Operated Pallet Truck

Description

Capacity: 2500 kgs
Load Centre: 600 mm
Operator Type: Ride on
Lifting Height: 85-200mm Max
Fork Lifting Height: 200 mm
Lowered Height of Fork: 85 mm
Height of Tilter Arm in Drive Position Min/Max: 1030/1200 mm
Rear Body Height: 800 mm
Standard Fork Width: 550 mm
Fork Length: 1150 mm
Fork Thickness: 54 mm
Fork Width: 185 mm
Minimum Turning Radius: 1720 mm
Clearance: 40 mm
Travelling Motor: 1.5 kw Vertical
Lifting Motor: 2.2 kw
Voltage: 24 V
Battery Capacity/Type: 210 AH
Max. Battery Box Size (L*W*H): 790*210*576 mm
Travelling Brake: Regenerate
Brake Type: Electromagnetic
Control System: 1230-2402 CURTIS
